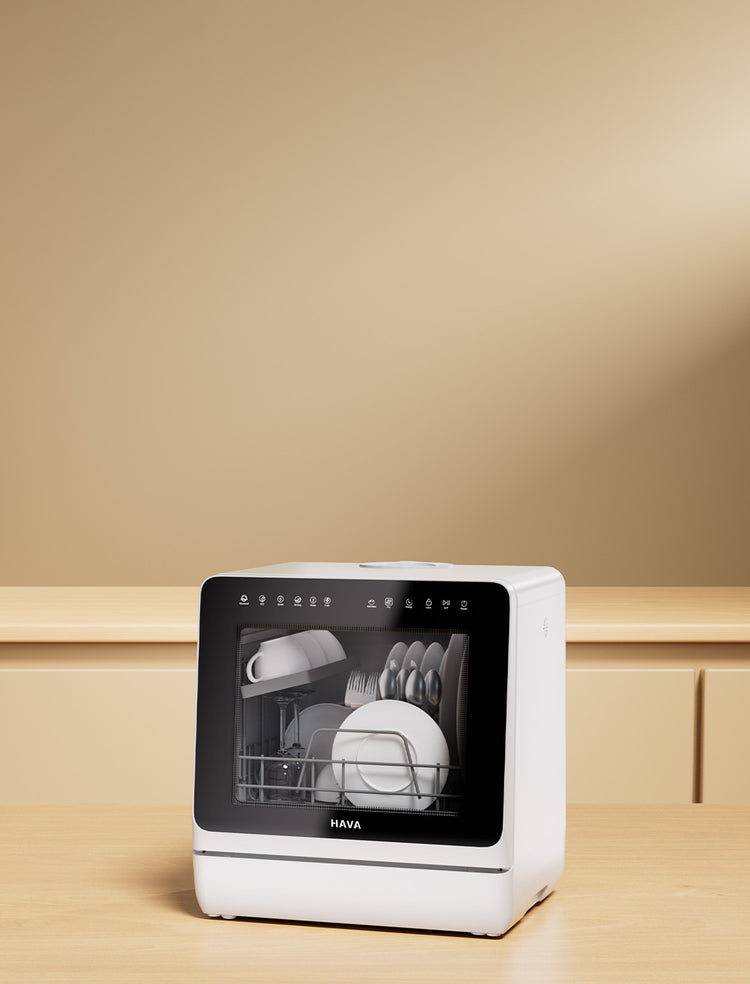

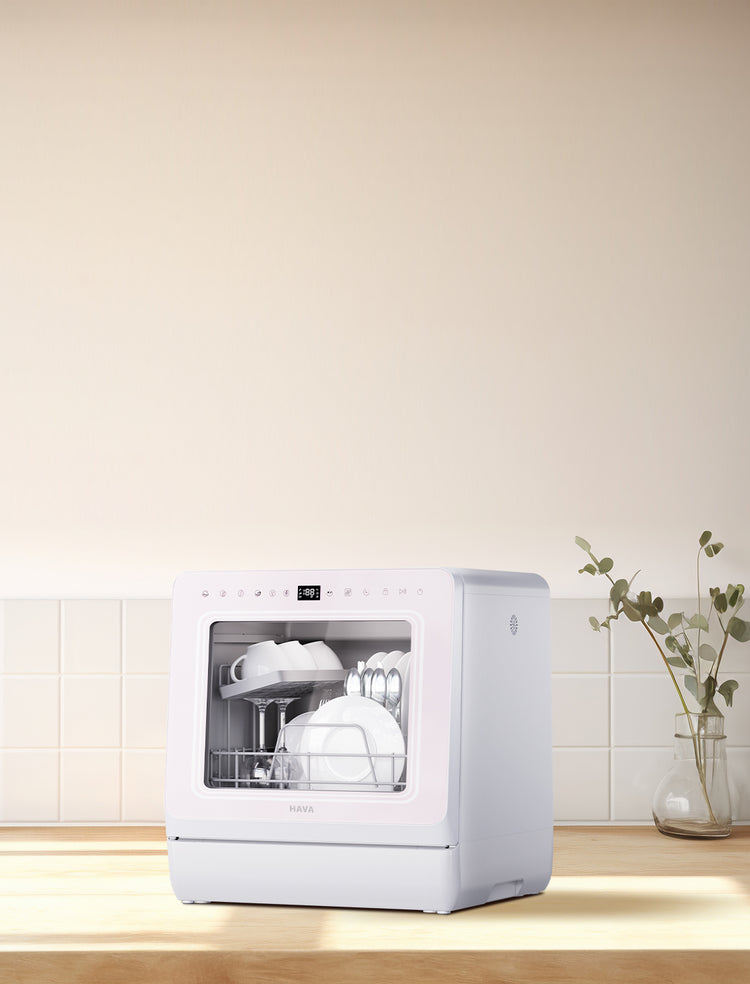

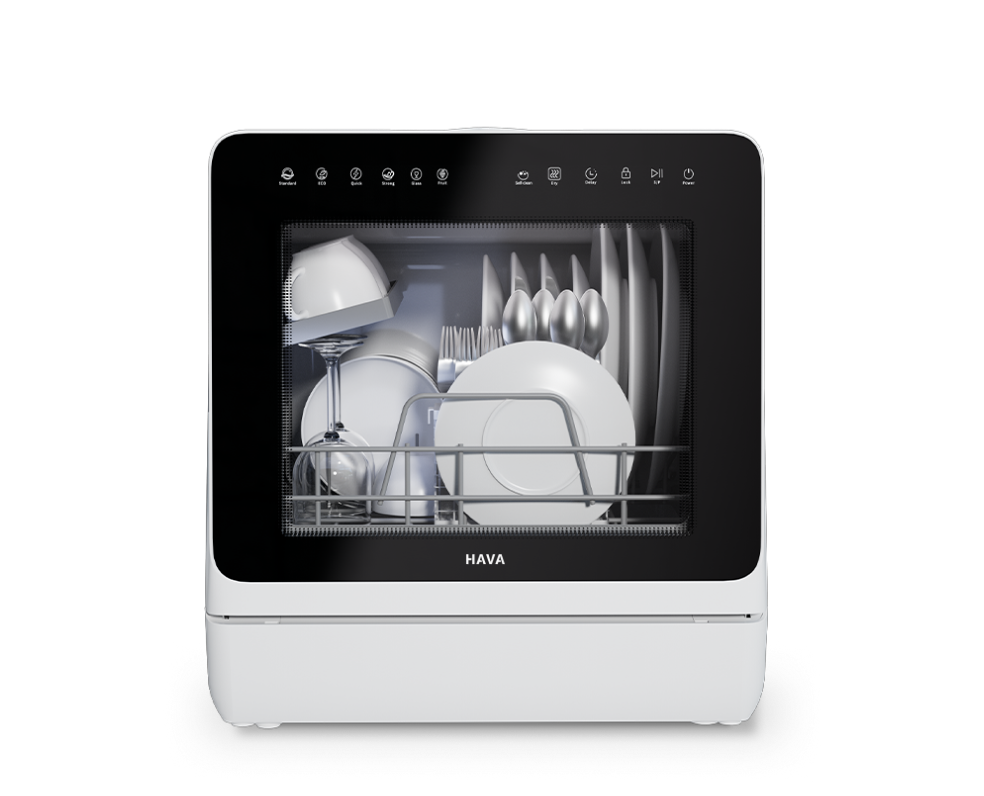

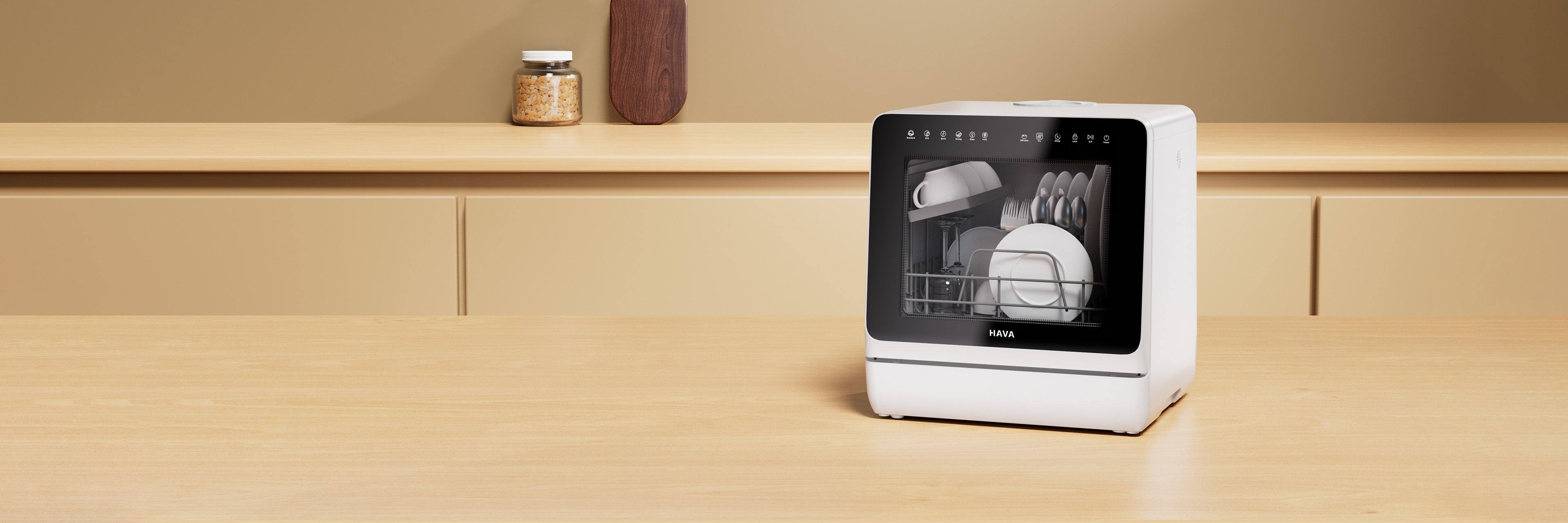

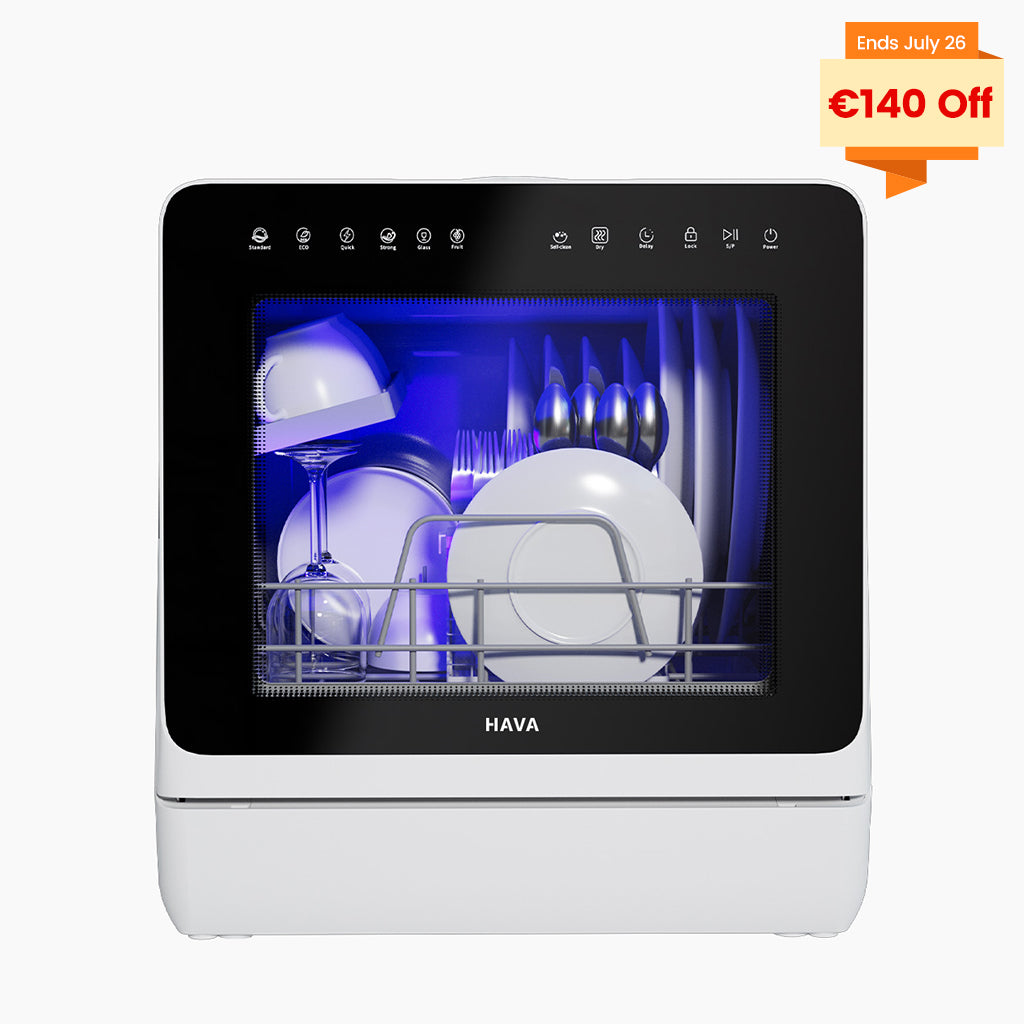

R09 Compact Countertop Dishwasher

Compact dimensions at 42.8 x 42.5 x 45.8 cm.
Capacity of 3-place settings for families of 2-5.
5 L built-in tank for convenient water feeding.
Integrated water softener prevents limescale buildup.
75 °C high-temperature washing and hot air drying.

€299.99 ~~€439.99~~

Secure this special pre-sale price!

Bundle Offer

R09 and T01 Bundle

€484.98~~€759.98~~

Save €275

Fast & Free Delivery: HAVA provides free shipping to all EU countries (except Malta, Cyprus, Greece, and overseas islands), with delivery typically within 3-5 business days. Most European orders are shipped via DHL, while DPD is used for select destinations.

12-Month Warranty: Shop with peace of mind and enjoy HAVA's buyer protection against all manufacturing defects for 12 months after purchase.

Lifetime Technical Support: Feel free to contact us at service@havalab.com or call (+1) 302-205-0226, and our expert team is ready to solve any problems you may have.

Highlights
Specifications
Packaging
Q & A
Reviews

Next-Generation Model with Unmatched Performance

Holds 30+ items with dishes up to 26 cm.

Highly effective water softener.

Industry-leading Energy Class D.

Delayed start of up to 18 hours.

Outstanding Energy Class D Rating

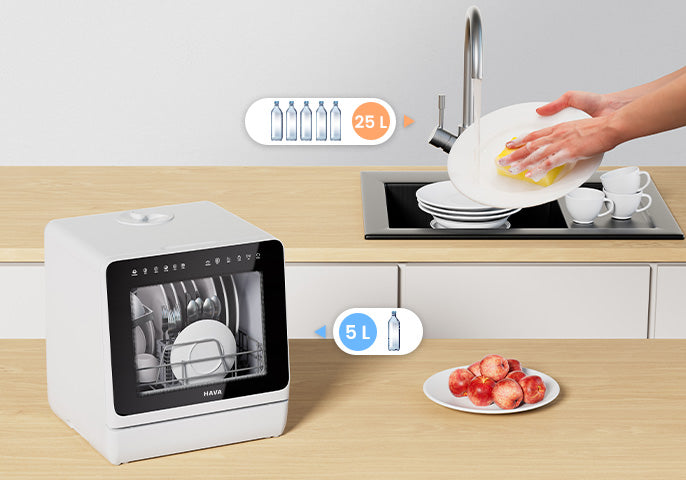

This dishwasher consumes as little as 0.35 kWh of electricity per wash cycle, and uses only 5 L of water, a saving of up to 80% compared with handwashing, perfect for a more sustainable lifestyle.

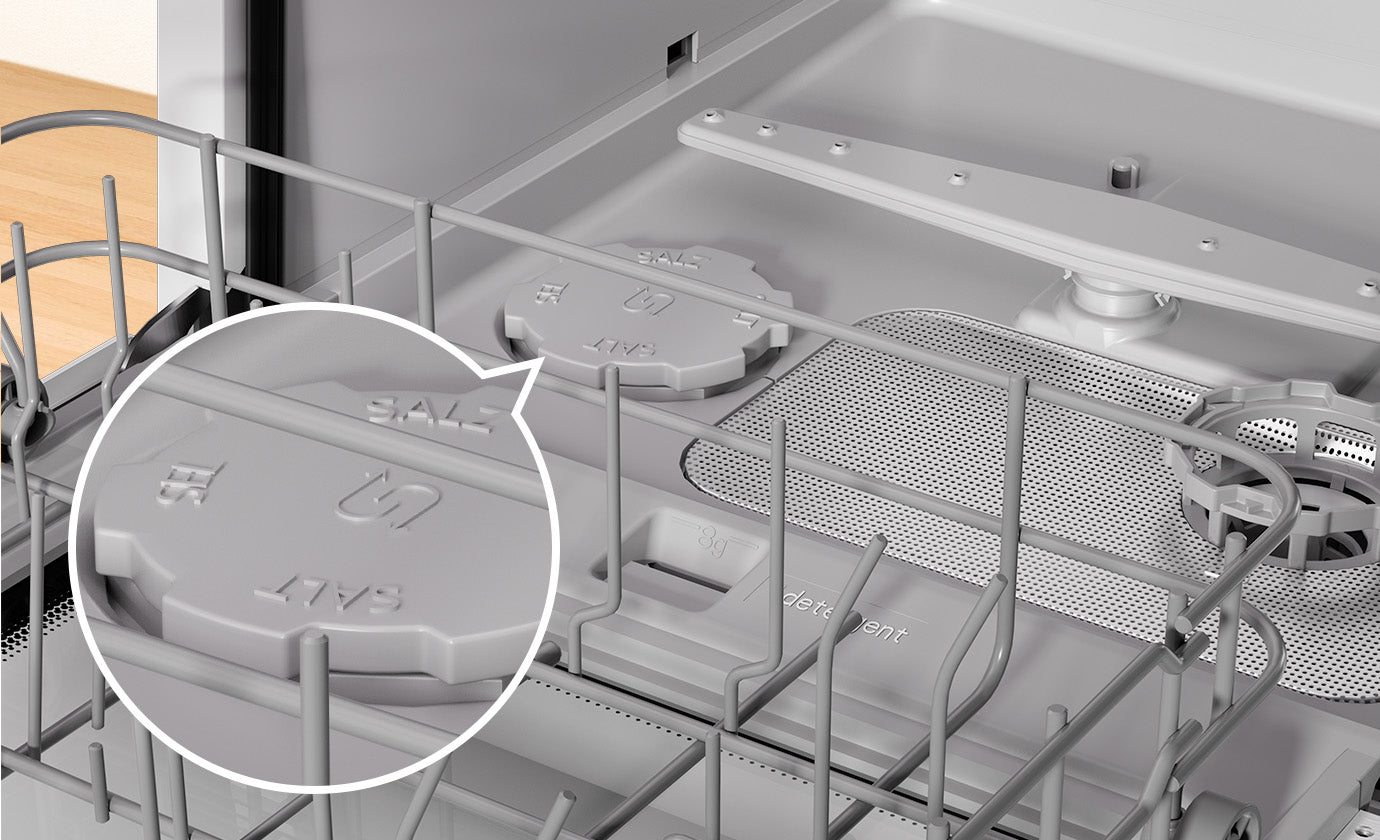

Integrated Water Softener

The R09 is equipped with a water softener to deal with hard water problems. It effectively prevents limescale buildup inside the machine or watermarks on your dishware, ensuring shiny surfaces after each wash.

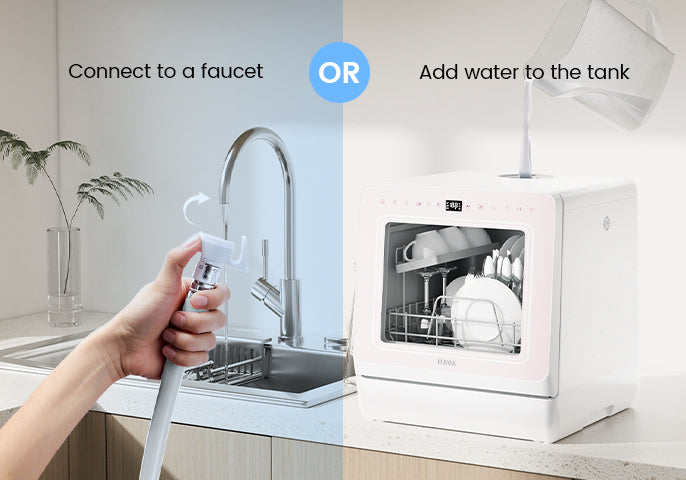

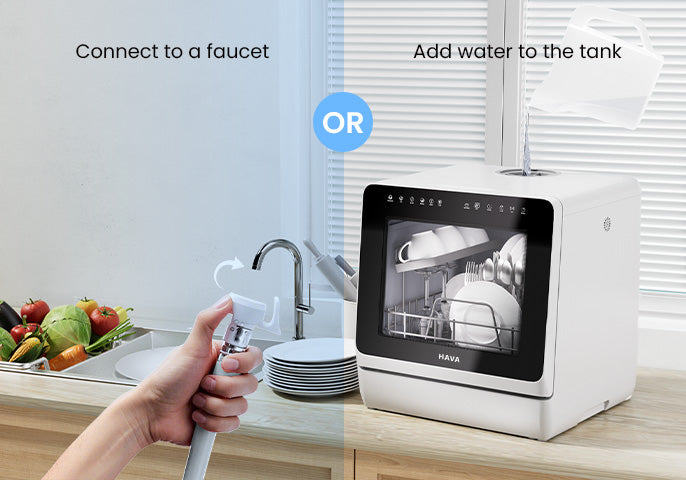

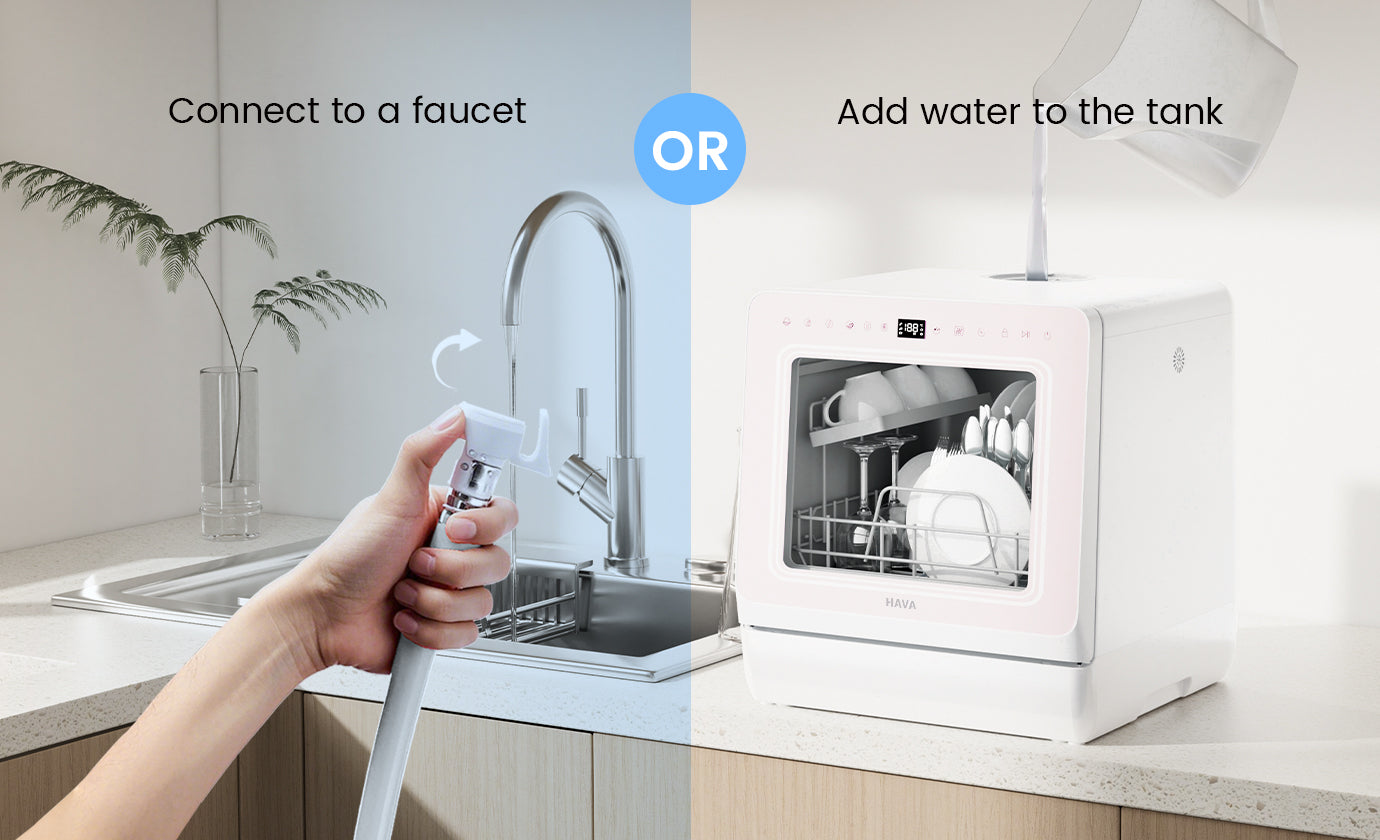

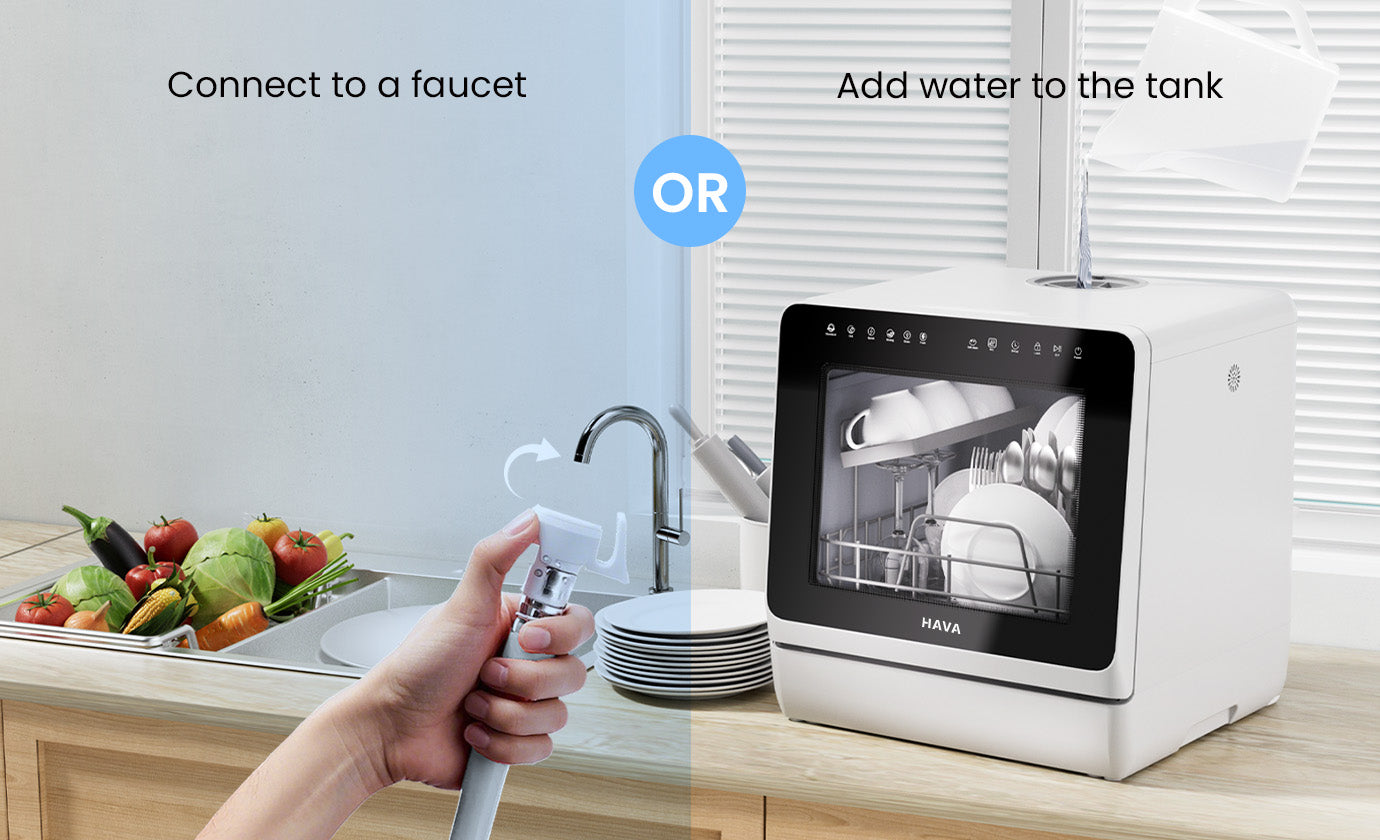

2 Water Supply Options

The machine features a 5 L water tank for plumbing-free installation and quick water supply. Alternatively you may also use the water inlet hose for connection to a faucet.

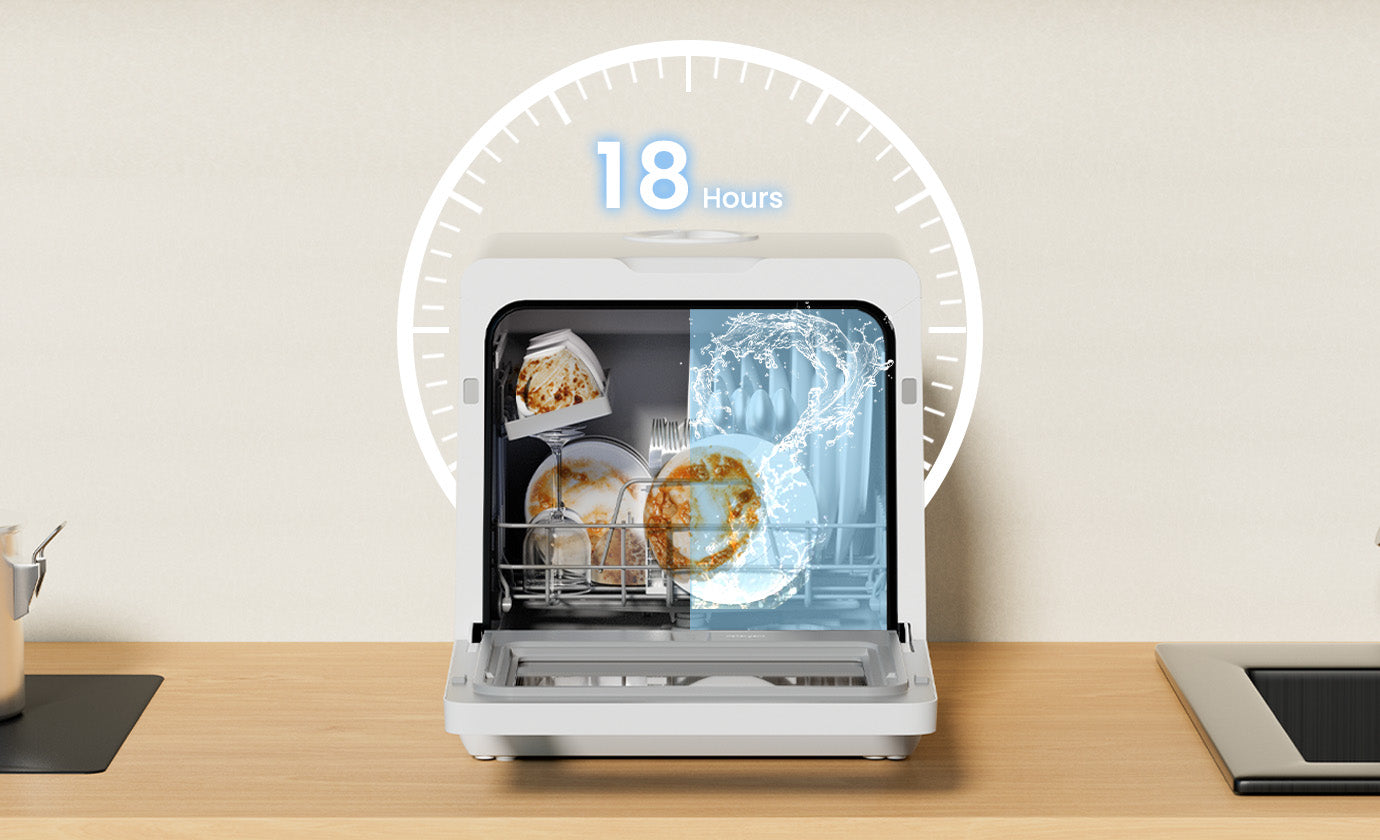

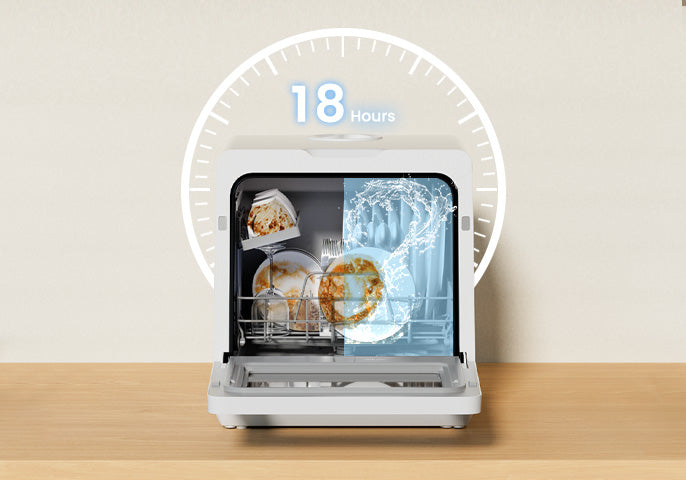

18-Hour Delayed Start Function

The delayed start function enables you to customize the washing schedule by starting a wash cycle up to 18 hours later, and maximize your energy savings by running the machine during off-peak hours.

7 Wash Cycles for Diverse Needs

Normal (69 min, 75 °C)

To clean normally soiled loads.

Quick (29 min, 75 °C)

Ultra-fast wash for lightly soiled loads.

Strong (89 min, 75 °C)

Suitable for baby bottles, oily tableware, and tough stains.

Glass (50 min, 75 °C)

Ideal for glassware and delicate items.

ECO (68 min, 62 °C)

An energy-efficient wash for slightly dirty dishes.

Fruit (19 min, no heating)

Suitable for washing hard surface fruit with room temperature water.

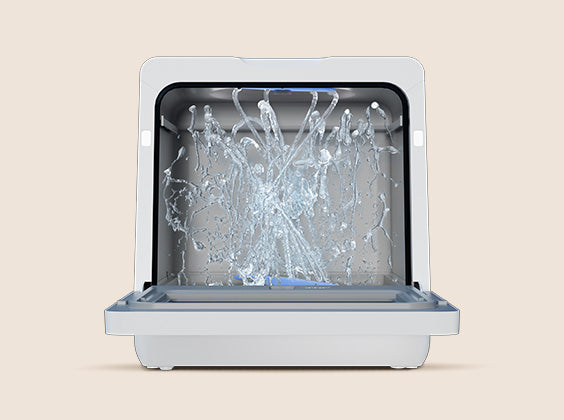

Self-Clean (79 min, 75 °C)

Recommended for regular use to maintain dishwashing performance.

2 Spray Arms & 360° Rinsing

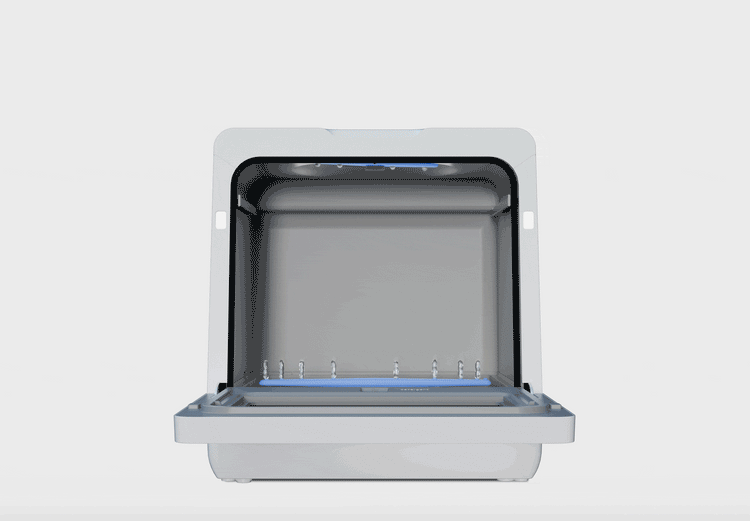

75 °C Hot Cleaning

The cleaning water is heated up to 75 °C to sanitize your dishes and remove all the food residue with ease.

11,000 Pa Pressurized Water

Water at 11,000 Pa from the 14 nozzles on the rotating spray arms thoroughly rinses every part of your tableware.

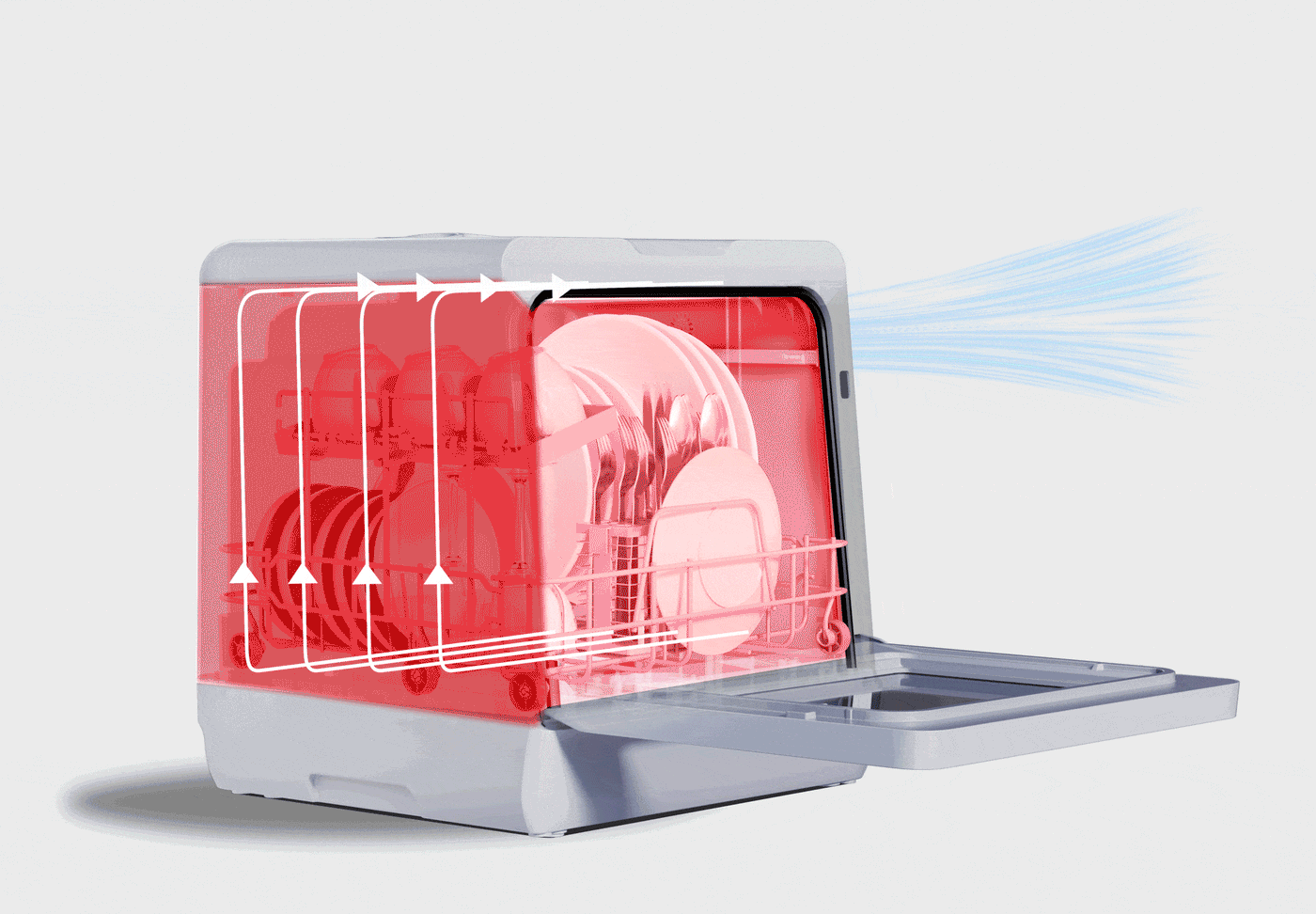

Hot Air Drying & Ventilation

After a wash cycle (except Fruit), 40 °C hot air is supplied into the machine for 60 minutes to dry your dinnerware completely.

When enabled, the 72-hour ventilation function introduces fresh air intermittently to keep your dishes and silverware moisture and odor free.

Thoughtful Details, Enhanced Experience

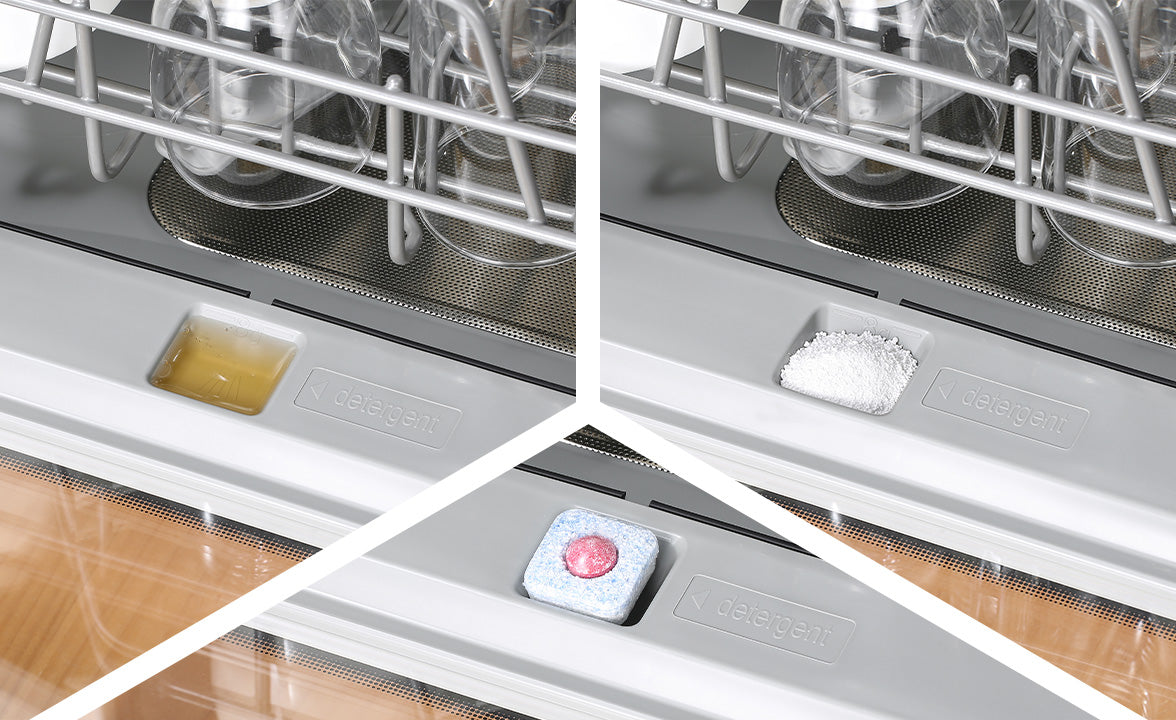

Tablets, Powder or Liquid

All types of detergent work perfectly and deliver sparkling cleanness.

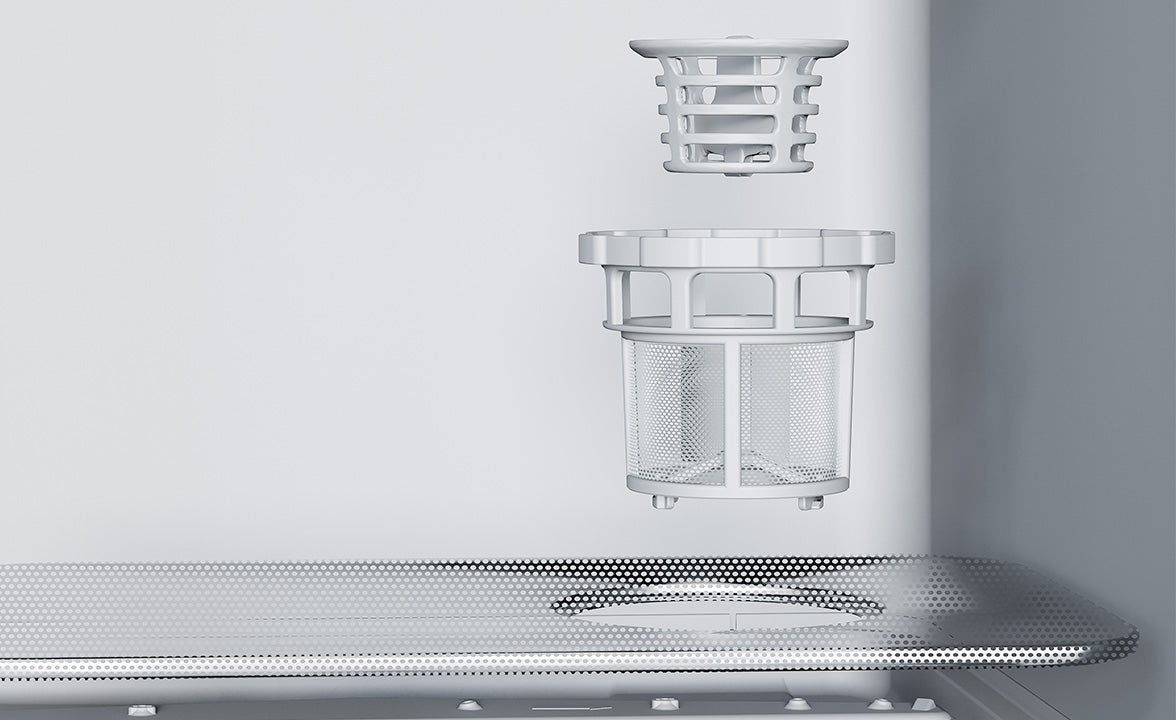

Triple Filtering System

Traps food particles and prevents them from clogging the pump or drain.

Child Lock Function

Safeguards against misoperation and avoids unwanted interruption.

Quiet Operation

Reinforced glass door keeps the noise level down to only 50-60 dB.

Intuitive Touch Controls

Start your washing task with a few touches and enjoy the convenience.

Durable Sliding Rollers

Allows smooth basket movement and easy loading/unloading.

Tablets, Powder or Liquid

Triple Filtering System

Child Lock Function

Intuitive Touch Controls

Quiet Operation

Durable Sliding Rollers

All types of detergent work perfectly and deliver sparkling cleanness.

Traps food particles and prevents them from clogging the pump or drain.

Safeguards against misoperation and avoids unwanted interruption.

Start your washing task with a few touches and enjoy the convenience.

Reinforced glass door keeps the noise level down to only 50-60 dB.

Allows smooth basket movement and easy loading/unloading.

Choose the Perfect Model for Your Needs

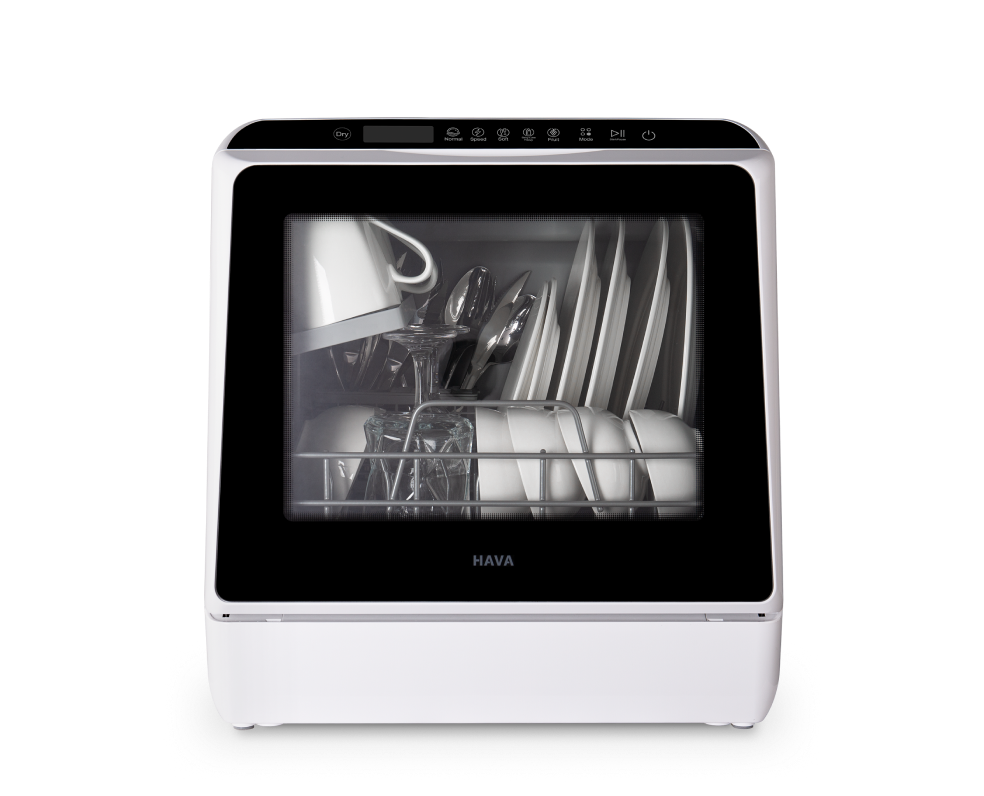

R01 Countertop Dishwasher

€279.99 ~~€399.99~~

Learn More

42.8 cm x 42.5 cm x 45.8 cm (L/W/H)

5 L Built-In Water Tank

Hot Air Drying & 72 h Ventilation

2 Place Settings

5 Washing Cycles

Energy Class F

R09 Countertop Dishwasher

€299.99 ~~€439.99~~

Add to Cart

42.8 cm x 42.5 cm x 45.8 cm (L/W/H)

5 L Built-In Water Tank

Hot Air Drying & 72 h Ventilation

3 Place Settings

7 Washing Cycles

Energy Class D

Integrated Water Softener

18 h Delayed Start Function

Child Lock Function

Specifications

Technical Data

Power	950 W	Voltage/Frequency	220-240 V/50 Hz (EU model) 110-120 V/60 Hz (US model)
Rated Current	6 A (EU), 10 A (US)	Inlet Pressure	0.04-1 MPa
Dimensions (L/W/H)	42.8 x 42.5 x 45.8 cm	Product Weight	14.3 kg
Energy Class	D	Noise Level	60 dB
Wash Cycle	7 options	Water Tank Capacity	5 L
Capacity	3 place settings	Dry Mode	PTC hot air
Control Console	Touch buttons	Lighting	Blue LED

Wash Cycles

Wash Cycle	Description	Wash Steps	Temperature	Detergent	Wash Time	Air Drying Time
Normal	To clean normally soiled loads	Hot water washing Cold water rinsing Cold water rinsing Hot water rinsing	55 °C Washing 75 °C Rinsing	8 g	69 min	60 min
ECO	Suitable for washing slightly dirty dishes	Hot water washing Cold water rinsing Hot water rinsing	46 °C Washing 62 °C Rinsing	11 g	68 min	60 min
Quick	Shorter wash for lightly soiled loads	Hot water washing Cold water rinsing Hot water rinsing	50 °C Washing 75 °C Rinsing	8 g	29 min	60 min
Strong	Suitable for washing baby bottles, oily and grimy tableware, or pet products	Hot water washing Hot water rinsing Cold water rinsing Hot water rinsing	55 °C Washing 55 °C Rinsing 75 °C Rinsing	12 g	89 min	60 min
Glass	Suitable for glassware and fragile items	Hot water washing Cold water rinsing Hot water rinsing	55 °C Washing 75 °C Rinsing	8 g	50 min	60 min
Fruit	Suitable for washing hard surface fruit with room temperature water	Cold water rinsing Cold water rinsing	Constant temperature, no heating	Not required	19 min	/
Self-Clean	Recommended for regular use to maintain dishwashing performance	Hot water washing Cold water rinsing Cold water rinsing Hot water rinsing	55 °C Washing 75 °C Rinsing	8 g	79 min	60 min

Packaging

Dishwasher with a 140 cm power cable x 1
Inlet hose (154 cm) x 1
Drain hose (154 cm) x 1
Fruit basket x 1
Cutlery basket x 1
Pitcher x 1
Dish rack x 1
User manual x 1

Q & A

What are the differences between the R01 and R09 Countertop Dishwashers?

The R09 model improves upon the R01 while maintaining a compact size. It features an optimized dish rack that can hold up to three sets of dishes, as well as additional functions such as a water softener, delayed start, and child lock. Additionally, the R09 has a more efficient Class D energy rating. You can refer to the comparison chart for more detailed information.

Why is the inside of my R09 Countertop Dishwasher damp?

Each HAVA countertop dishwasher undergoes testing and inspection before shipping. As a result, it's normal for your dishwasher to have some residual water inside. This does not indicate any quality issues. However, if you prefer, you can run a Self-Clean cycle with an empty load before your first use to clean the dishwasher.

What type of detergent should I use?

You can use dishwasher tablets, liquid, or powder detergents. Add the detergent to the dispenser located at the bottom of the glass door. Be sure to only use detergents specifically designed for dishwashers. Do not use rinse aids in the detergent compartment.

Can I place the dishwasher under the sink instead of on the countertop?

The HAVA R01 Dishwasher can be used anywhere that is convenient. However, please ensure that the height between the sink and the drain hose is less than 45 cm for proper water drainage.

How should I add dishwasher salt to the HAVA R09 Dishwasher?

To add dishwasher salt, first rotate the softener cap counterclockwise to remove it. Add between 250 g and 500 g of dishwasher salt, and if the inside of the softener is dry, fill it with cold water. Do not overfill. Carefully stir the salt into the water, then securely close the cap.
Make sure the water softener is correctly set for your local water hardness. To adjust the setting, press and hold the Power and Child Lock buttons simultaneously for 5 seconds. Then, short press the Child Lock button to cycle through the settings. Confirm the desired setting by short pressing the Power button.

How do I set the delayed start function on the HAVA R09 Dishwasher?

To activate the delay start function, first select your desired wash cycle. Then, press the "Delay" button to set the timer. Each time you press the "Delay" button, the delay time will increase, allowing you to choose a delay between 1 and 18 hours. Once you've selected your preferred delay, press the "Start/Pause" button to begin the countdown. The wash cycle will start automatically after the selected delay time has passed. If you wish to cancel the delay, simply press and hold the "Delay" button.

What is the Self-Cleaning function of the HAVA R09 used for?

The Self-Cleaning function is recommended for regular use to maintain optimal dishwashing performance by thoroughly rinsing the interior of the dishwasher. If you use the dishwasher daily, it's advised to run the Self-Clean cycle every two weeks. You can also add detergent during the cycle to help remove stains more effectively.

Do both water supply options (faucet connection and water tank) consume 5 liters of water?

Yes, the R09 Dishwasher consumes 5 liters of water per cycle, whether it is supplied via the tap or manually filled.

Can I add hot water directly to the tank or connect the dishwasher to a hot water supply faucet?

The HAVA R09 Dishwasher features a built-in heating pump that heats the water during the cycle (except for the Fruit cycle) to ensure more effective cleaning. To protect the lifespan of the machine, we do not recommend adding hot water directly to the dishwasher or connecting it to a hot water faucet.

How much electricity does the R09 Dishwasher consume per wash cycle?

The HAVA R09 Dishwasher has a Class D energy rating, which is more efficient than most similar models on the market (which have a Class F efficiency). It consumes only 0.35 kWh of electricity per cycle.
